Metadata and plots from OSU Buoy Group Accession 4732

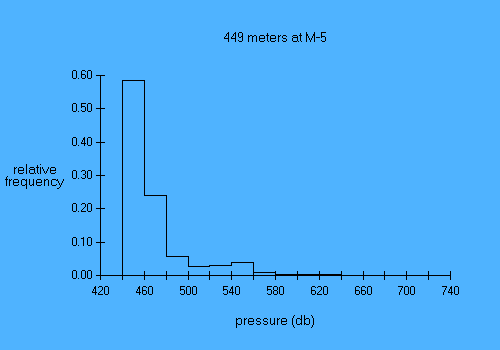

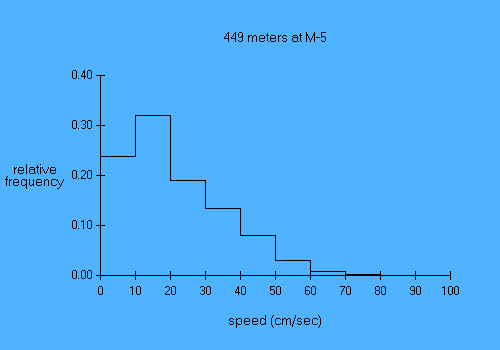

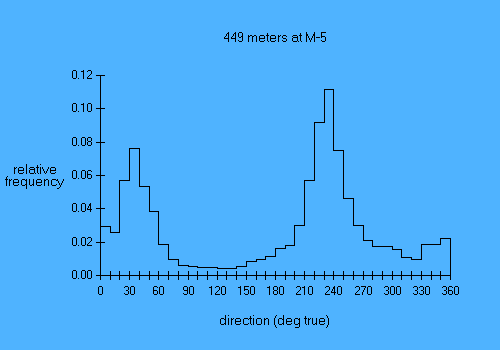

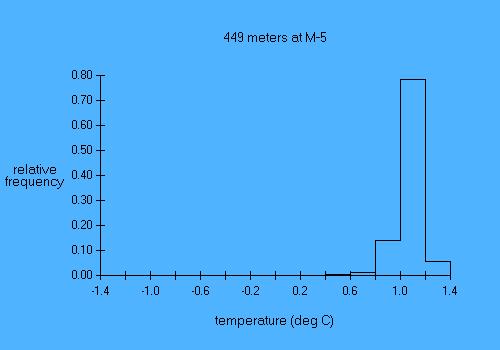

Experiment name: AnSlope 2004-05 Principal Investigator: A.L.Gordon/A.Orsi/R.D.Pillsbury Affiliation: LDEO/TAMU/OSU Mooring name: M-5 Mooring position: 71.907 deg S, 172.922 deg E Instrument depth 449 meters Seafloor depth: 1749 meters Times: 0630 09 Mar 2004 to 0530 03 Feb 2005 Time increment: 30 minutes Instrument type: Aanderaa RCM8s parameter min mean max stddev days speed (cm/sec) 0.92 21.11 84.06 14.03 330.98 dir (deg true) 0.11 177.76 359.83 104.78 330.98 u (cm/sec) -61.41 -4.87 62.14 16.32 330.98 v (cm/sec) -59.62 -0.83 65.94 18.76 330.98 temp (deg C) -1.23 1.07 1.30 0.12 330.98 pressure (db) 449.30 469.50 721.10 30.67 330.98 The pressure record indicates that the mooring slipped about 7 meters downhill between 6 Jan 2005 and 16 Jan 2005.

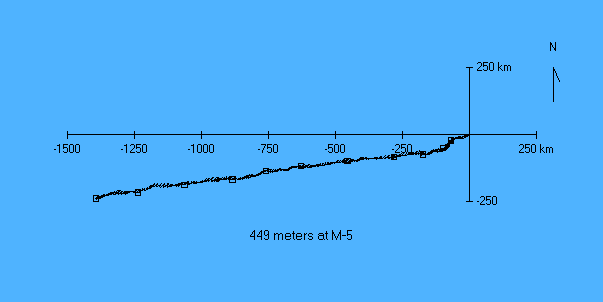

The axes of the PVD are labelled in kilometers. Boxes mark the beginning of each month.
